Electrolyte Analyzer
PROTYzer Medical System
Type/Category: ProMax -5000
Test speed
60 T/H
Principle : Direct measurement by ion ISE
Sample : Whole blood, serum, plasma, diluted urine .
Sample volume : 100-150µL
Throughput : up to 60 samples/h
Calibration : Automatic or On-demand
Dimensions : 440mm 380mm 350mm (HWD)
Input voltage : AC 220V/110V ± 10%, 50/60Hz
Download PDF
Product Description

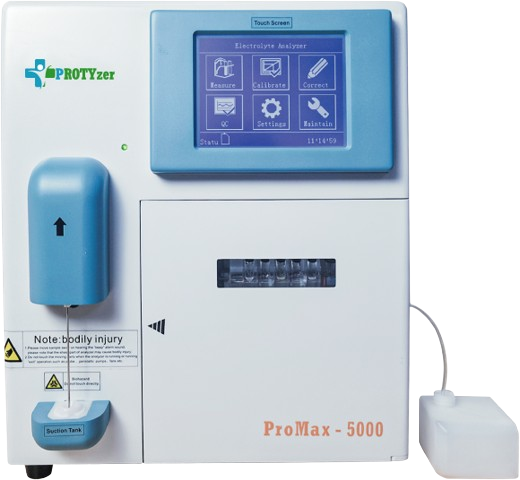

Automatic Electrolyte Analyzer ProMax - 5000
ProMax - 4000
Protyzer Medical System
Hageneor Str.&319061 Schril Germany
Class: K / Na / Cl / Ca2 / pH
Electrolyte analyzers measure electrolyte levels in the human body to detect metabolic imbalances and measure renal and cardiac function. The electrolytes measured include sodium (Na+), potassium (K+), chloride (Cl-)Ca2 / pH Electrolyte analyzers are used in hospital and reference laboratories and also point of care settings. Most electrolyte analyzers use blood plasma, serum, or urine samples; some analyzers can use whole blood (for faster turn around time) and cerebrospinal fluid (CSF). Electrolytes are measured using ion-selective electrodes (ISE) and colorimetric and photometric techniques.
- Fully automatic
- Energy efficient
- Proper functioning
|
Principal |
Direct measurement by lon Selective Electrode (ISE) |
|
Sampole |
Whole blood, serum, plasma, diluted urine |
|
Throughput |
100-150pL |
|
Data storage |
up to 60 samples/h |
|
Calibration |
Automatic or On-demand |
|
Input |
Touch-screen |
|
Display |
Large LCD with backlight |
|
Output |
Internal thermal recorder, RS-232 serial port |
|
Working Environment |
Temperature: 15° C-32° С |
|
Relative humidity |
85% |
|
Input voltage |
AC 220V/110V ± 10%, 50/60Hz |
|
Power consumption |
60W |
|
Dimensions |
440mm 380mm 350mm (HWD) |
Additional Information
| Item Code | ProMax - 5000 |
Available Models
ProMax - 4000 K / Na / Cl
ProMax - 5000 K / Na / Cl / Ca2 / pH
ProMax - 6000 K / Na / Cl / Ca2 / pH / CO2
- Sealed reagent kit, closed reagent system, no direct contact with liquid, easy for maintenance and transportation
- Long life span, high performance, maintenance-free electrodes
- Original calibrator and controller, real-time calibration system
- Automatic sampling, washing, and calibration
- Touch screen, large LCD display
- Internal thermal recorder
- Optional Auto sampler
- Electrode for K / Na / Cl / Ca2 / pH
