PROTYzer Medical System
Type/Category: Electrolyte Analyzer
Test speed
60 T/H
Principle : Direct measurement by lon ISO
Sample : Whole blood, serum, plasma, diluted urine .
Sample volume : 100-150µL
Throughput : up to 60 samples/h
Calibration : Automatic or On-demand
Dimensions : 440mm 380mm 350mm (HWD)
Input voltage : AC 220V/110V ± 10%, 50/60Hz
Download PDF
Product Description

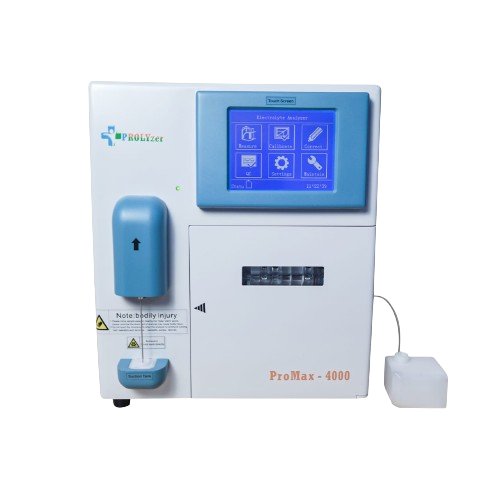

Automatic Electrolyte Analyzer ProMax - 4000
Class: K, Na+, Cl
Electrolyte analyzers measure electrolyte levels in the human body to detect metabolic imbalances and measure renal and cardiac function. The electrolytes measured include sodium (Na+), potassium (K+), chloride (Cl-) Electrolyte analyzers are used in hospital and reference laboratories and also point of care settings. Most electrolyte analyzers use blood plasma, serum, or urine samples; some analyzers can use whole blood (for faster turn around time) and cerebrospinal fluid (CSF). Electrolytes are measured using ion-selective electrodes (ISE) and colorimetric and photometric techniques.
Principal | Direct measurement by lon Selective Electrode (ISE) |
Sample | Whole blood, serum, plasma, diluted urine |
Throughput | 100-150pL |
Data storage | up to 60 samples/h |
Calibration | Automatic or On-demand |
Input | Touch-screen |
Display | Large LCD with backlight |
Output | Internal thermal recorder, RS-232 serial port |
Working Environment | Temperature: 15° C-32° С |
Relative humidity | 85% |
Input voltage | AC 220V/110V ± 10%, 50/60Hz |
Power consumption | 60W |
Dimensions | 440mm 380mm 350mm (HWD) |
- Sealed reagent kit, closed reagent system, no direct contact with liquid, easy for maintenance and transportation
- Long life span, high performance, maintenance-free electrodes
- Original calibrator and controller, real-time calibration system
- Automatic sampling, washing, and calibration
- Touch screen, large LCD display
- Internal thermal recorder
- Optional Auto sampler
- Electrode for K+ ,Na+ ,Cl-
